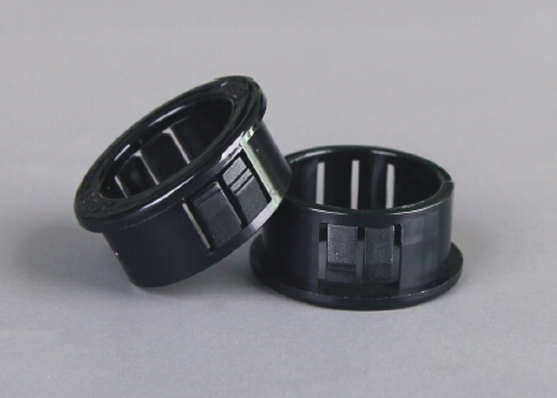

- Product name: SNAP BUSHING
- Data name: SNAP BUSHING_Cable protection
Material:UL approved Nylong 66,94v-2
Color:Black
BUSHING smooth and insulate your raw-edged holes in metal chassis
Locking into hole firmly with fingertip pressure
Protect electrical cables,ropes,utility lines through metal holes
Available in application for chassis thickness Under 3.2mm
SB-8A:Available for r chassis thickness Under 2.2mm
SB-8:Available for r chassis thickness Under 1.6mm
Product details

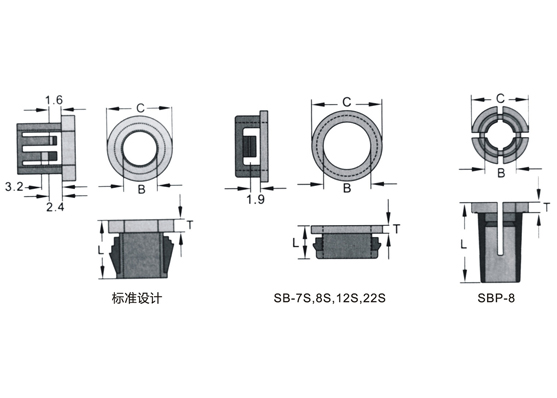

Model | Mounting Hole A(mm) | B(mm) | C(mm) | L(mm) | T(mm) | Packing | Drawing |
| SB-7S | 7.1 | 5.8 | 8.8 | 6.1 | 1.3 | 100pcs | Drawing |
| SB-8S | 7.9 | 6.8 | 9.8 | 6.0 | 1.5 | Drawing | |
| SB-12S | 11.9 | 9.2 | 13.7 | 6.3 | 1.5 | Drawing | |
| SB-22S | 22.2 | 19.6 | 24.0 | 6.5 | 1.5 | Drawing | |
| SB-8 | 7.9 | 5.8 | 10.5 | 8.0 | 1.6 | Drawing | |
| SB-8A | 7.9 | 5.1 | 10.3 | 8.0 | 1.6 | Drawing | |
| SBP-8 | 7.4 | 5.9 | 10.8 | 15.0 | 2.0 | Drawing | |
| SB-10 | 9.5 | 6.4 | 12.0 | 10.3 | 1.6 | Drawing | |
| SB-10M | 9.5 | 7.8 | 13.0 | 10.5 | 1.6 | Drawing | |
| SB-13 | 12.7 | 8.0 | 15.0 | 10.3 | 1.6 | Drawing | |
| SB-14 | 14.3 | 11.4 | 17.0 | 10.3 | 1.5 | Drawing | |
| SB-16 | 15.9 | 12.7 | 18.6 | 10.3 | 1.6 | Drawing | |
| SB-19 | 19.1 | 14.3 | 21.7 | 10.3 | 1.6 | Drawing | |
| SB-19M | 19.1 | 15.8 | 21.7 | 10.3 | 1.6 | Drawing | |
| SB-20 | 20.0 | 15.9 | 22.4 | 10.0 | 1.4 | Drawing | |
| SB-22 | 22.2 | 17.5 | 24.2 | 11.5 | 1.6 | Drawing | |
| SB-22M | 22.2 | 18.9 | 24.2 | 11.5 | 1.6 | Drawing | |
| SB-25 | 25.4 | 19.5 | 28.5 | 11.7 | 1.8 | Drawing | |
| SB-26 | 25.8 | 19.1 | 28.5 | 11.5 | 1.6 | Drawing | |
| SB-30 | 30.1 | 24.1 | 33.3 | 11.5 | 1.6 | Drawing | |
| SB-32 | 32.0 | 23.8 | 34.6 | 11.4 | 1.5 | Drawing | |
| SB-38 | 38.1 | 29.0 | 42.1 | 11.4 | 1.5 | Drawing | |
| SB-45 | 44.5 | 35.4 | 47.8 | 11.6 | 1.5 | Drawing | |
| SB-50 | 50.8 | 41.6 | 54.6 | 11.8 | 1.6 | Drawing |
