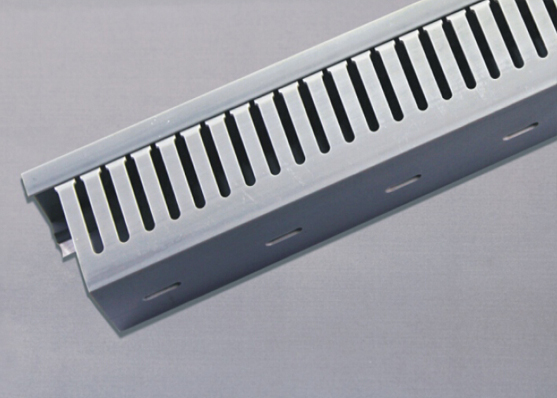

Product name: SLOTTED/SOLID WALL WIRING DUCTS
Data name: SLOTTED/SOLID WALL WIRING DUCTS_Cable protection

Easy and firm snap-on assembly,smooth joining for a better finsh

Solid wiring ducts without holt punctures are also available

Manufactured with high quality rigid PVC with good insulaton,flame retardant and heat resistan

Material：PVC

Length：1.7M，2M

Color：white gray balck beige blue.Other colors are also available.

Download

Product details

Model	Slot Hole Size	W×H(mm)	Wiring Volume(PCS)	Mounting Hole Dimension	Download
GW-1525	(S/L)	15×25	5-12	Small	Drawing
GW-1616	(S/L)	16×16	3-10	Small	Drawing
GW-2020	(S/M/L)	20×20	5-12	Small	Drawing
GW-2060	(S/M/L)	20×60	5-12	Small	Drawing
GW-2516	(S/M/L)	25×16	5-12	Small	Drawing
GW-2525	(S/M/L)	25×25	10-25	Small	Drawing
GW-2540	(S/M/L)	25×40	20-25	Small	Drawing
GW-2545	(S/M/L)	25×45	20-25	Small	Drawing
GW-2565	(S/M/L)	25×65	40-45	Small	Drawing
GW-3333	(S/M/L)	33×33	25-54	Small	Drawing
GW-3345	(S/M/L)	33×45	40-55	Small	Drawing
GW-3365	(S/M/L)	33×65	60-75	Small	Drawing
GW-3816	(S/M/L)	38×16	12-13	Small	Drawing
GW-4025	(S/M/L)	40×25	20-25	Small	Drawing
GW-4040	(S/M/L)	40×40	60-70	Small	Drawing
GW-4060	(S/M/L)	40×60	100-115	Small	Drawing
GW-4080	(S/L)	40×80	120-135	Small	Drawing
GW-4545	(S/M/L)	45×45	60-70	Small	Drawing
GW-4565	(S/M/L)	45×65	110-120	Small	Drawing
GW-5050	(S/M/L)	50×50	80-90	Small	Drawing
GW-50100	(S/M/L)	50×100	210-260	Small	Drawing
GW-6040	(S/M/L)	60×40	100-115	Small	Drawing
GW-6060	(S/M/L)	60×60	120-135	Small	Drawing
GW-6080	(S/L)	60×80	180-210	Small	Drawing
GW-6545	(S/M/L)	65×45	110-120	Small	Drawing
GW-6565	(S/M/L)	65×65	180-200	Small	Drawing
GW-7264	(L)	72×64	200-220	Large	Drawing
GW-8040	(L)	80×40	120-135	Large	Drawing
GW-8060	(L)	80×60	180-210	Large	Drawing
GW-8080	(S/L)	80×80	240-290	Large	Drawing
GW-33100	(L)	33×100	180-200	Large	Drawing
GW-70100	(L)	70×100	250-300	Large	Drawing
GW-10050	(L)	100×50	200-250	Large	Drawing
GW-10060	(L)	100×60	240-290	Large	Drawing
GW-100100	(L)	100×100	300-400	Large	Drawing
GW-15075	(L)	150×75	335-500	Large	Drawing
