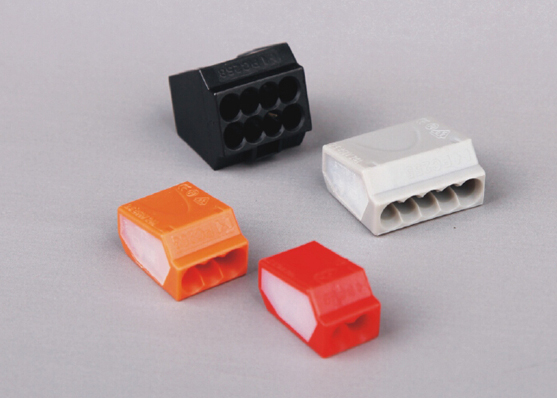

  • Product name: PUSH-IN WIRE CONNECTORS
  • Data name: PUSH-IN WIRE CONNECTORS_Wire connector
Housing Material:Polyamide66(PA66),flame-retardant to UL 94-v2 Working thermoplastic
Clamp Unit: steel plate with copper plate,tin-plated Stainless spring steel
Strip Length:11mm /0.43 in.
Rated 600V Max.for building wiring and 1000v Max. in lighting flxtures / luminaries and signs
Can be supplied under private label packaging

Product details

Model

Order Number

Poles

Color

Electrical Ratings

Packing

Download

PC252PC2522RedIEC:24A,450V,T110℃,1-2.5,mm²,Sol
UL:600V,105℃(221℉),#22-#12AWG,Sol Cu
500 Pcs/Bag
5000 Pcs/Ctn

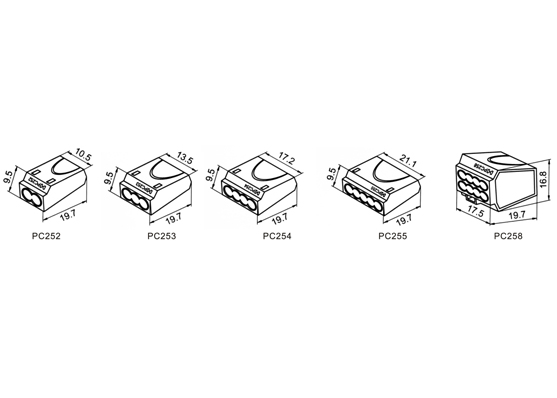

Drawing
PC252X
PC253PC2533OrangeIEC:24A,450V,T110℃,1-2.5,mm²,Sol
UL:600V,105℃(221℉),#22-#12AWG,Sol Cu
500 Pcs/Bag
5 000 Pcs/Ctn
Drawing
PC253X
PC254PC2544YellowIEC:24A,450V,T110℃,1-2.5,mm²,Sol
UL:600V,105℃(221℉),#22-#12AWG,Sol Cu
500 Pcs/Bag
5 000 Pcs/Ctn
Drawing
PC254X
PC255PC2555GreyIEC:24A,450V,T110℃,1-2.5,mm²,Sol
UL:600V,105℃(221℉),#22-#12AWG,Sol Cu
500 Pcs/Bag
5 000 Pcs/Ctn
Drawing
PC255X
PC258PC2588BlackIEC:24A,450V,T110℃,1-2.5,mm²,Sol
UL:600V,105℃(221℉),#22-#12AWG,Sol Cu
250 Pcs/Bag
2500 Pcs/Ctn
Drawing
