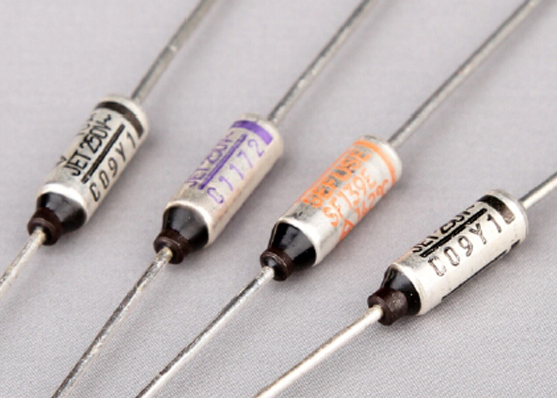

  • Product name: SF/E Series
  • Data name: SF/E Series_Sefuse

Product details

notes2)

Part Number

TF·Tf Pated Functioning Temperature (℃)

Operating Temperature (℃) TH Th (℃)TM
Tm
(℃)
Rated
Current
Rated
Voltage
ULVDEBEABCCCPSE Download
JPN Thai JPN Thai
SF 70E 73 70±2 58150

15A/10A
(Resistive)

AC250VE71747677802
-1171
-0002

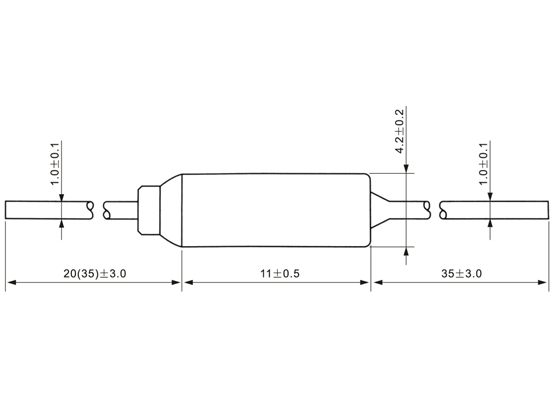

C1185※1※210081003Drawing
SF 76E 77 76±04 62Drawing
SF 91E 94 91±31 7910101002Drawing
SF 96E 99 96±2 84Drawing
SF 113E 113 110±2 9816010111001Drawing
SF 119E 121 119±2 10615010121004 Drawing
SF 129E 133 129±2 118159Drawing
SF 139E 142 139±2 1271013 1005 Drawing
SF 152E 157 152±2 142172Drawing
SF 169E 172 169±13 15718910141006Drawing
SF 184E 184 182±2 17421010151007Drawing
SF 188E 192 188±31 177
Drawing
SF 214E 216 214±13 200 10161008Drawing
SF 226E 227 226±1310171009Drawing
SF 240E 240 237±2Drawing
1)No  use of hazardous substances prescribed by WEEE and ROHS.

2)Part number indicates thermal cutoffs with standard lead lengths.For long lead length types,add the suffix"-1"at the end of the part nomber.

3)The maximum temperature limit Tm of SF226E is shown in the following table

※1:2002010205023072(10A) 2004010205121099(15A)

※2:2002010205023074(10A) 2004010205120822(15A)


Tm

ULCSABEABVDEKTL

Download

SF188E375375375

SF214E
SF226E 240330300
SF240E 375375375
