Product details
notes1） WEEE(ROHS) | notes2）Part Number | TF.Tf Rated Functioning Temperature | Operating Temperature | Rated Current | Rated Voltage | UL | CCC | 全法PSE |
Download |
| 〇 | SF 70Y | 73 | 70±2 | 15A | AC250 | ※1 | 1008 | Drawing | |
| 〇 | SF 76Y | 77 | 76±04 | Drawing | |||||
| 〇 | SF 91Y | 94 | 91±31 | 1010 | Drawing | ||||
| 〇 | SF 96Y | 99 | 96±2 | Drawing | |||||
| 〇 | SF113Y | 113 | 110±2 | 1011 | Drawing | ||||
| 〇 | SF119Y | 121 | 119±2 | E71747 | 1012 | Drawing | |||
| 〇 | SF129Y | 133 | 129±2 | Drawing | |||||
| 〇 | SF139Y | 142 | 139±2 | 1013 | Drawing | ||||
| 〇 | SF152Y | 157 | 152±2 | E71747 | Drawing | ||||
| 〇 | SF169Y | 172 | 169±13 | 1014 | Drawing | ||||
| 〇 | SF184Y | 184 | 182±2 | 1015 | Drawing | ||||
| 〇 | SF188Y | 192 | 188±31 | Drawing | |||||
| 〇 | SF214Y | 216 | 214±13 | 1016 | Drawing | ||||
| 〇 | SF226Y | 227 | 226±13 | 1017 | Drawing | ||||
| 〇 | SF240Y | 240 | 237±2 | Drawing |
※1：2004010205122568
1）No use of hazardous substances prescribed by WEEE and ROHS.

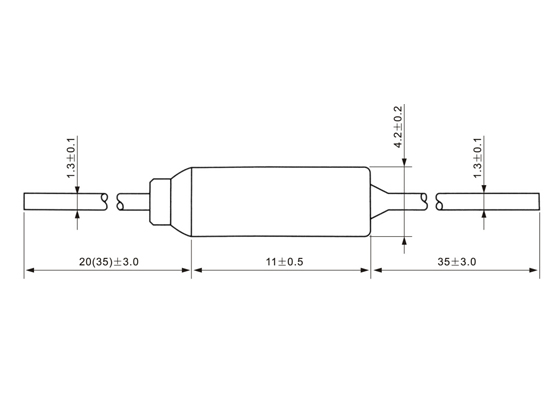

2)Part number indicates thermal cutoffs with standard lead lengths.For long lead length types,add the suffix"-1"at the end of the part nomber.
