  • Product name: SFH/E Series
  • Data name: SFH/E Series_Sefuse
Download

Product details

notes2）

名称Part Number

TF·Tf Pated Functioning Temperature (℃)

 Operating Temperature (℃) TH Th (℃)Maximum
Temperature
Limit
Tm
(℃)
Rated
Current
Rated
Voltage		ULVDEBEABCCCKTLPSE Download
JPN Thai
Rating
15A		 Rating
10A		 Rating
15A		 Rating
10A
SFH106E 110 106±32 99380

15A/10A
(Resistive)

AC250V

E71747



677802
-1171

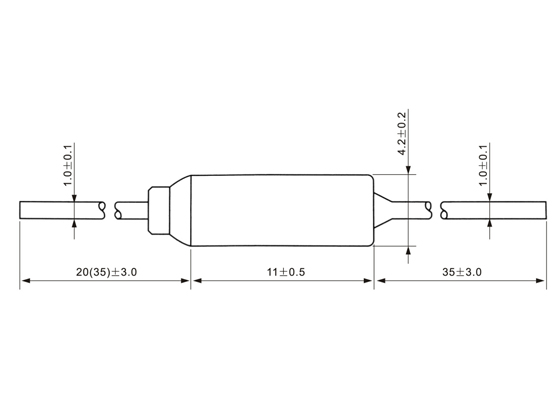

-0004		C1185※1※2500650052003101120031001 Drawing
SFH109E 113 109±32 102 Drawing
SFH113E 117 113±32 106 Drawing
SFH117E 121 117±32 110 5007 50062004101220041004 Drawing
SFH124E 128 124±32 117 Drawing
SFH129E 134 129±32 122 Drawing
SFH134E 139 134±32 127 Drawing
SFH152E 157 152±32 145 2005 1013 2005 1005Drawing
SFH162E 167 162±32 155500850072006101420061006Drawing
SFH172E 176 172±3 165Drawing

1)No use of hazardous substances prescribed by WEEE and ROHS

2)Part number indicates thermal cutoffs with standard lead lengths.For long lead length types,add the suffix"-1" at the end of the part nomber

3)The electrical ratings according to the various safety standards are shown in the following table

※1:2006010205173643(10A) 2006010205173642(15A)

※2:2006010205173644(10A) 2006010205173645(15A)

Rated Voltage

ULVDEBEABCCCKTL

PSE

Download

AC120V20A





AC250V10A10A10A10A10A10A
15A15A15A15A15A15A
17A
