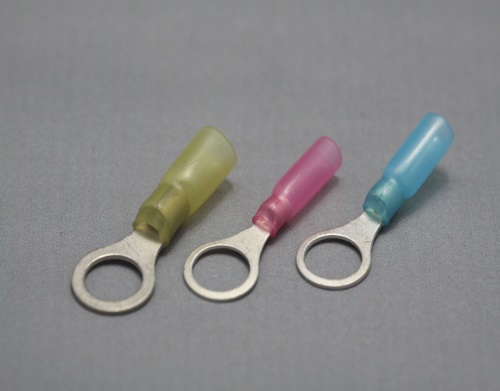

- Product name: Heat Shrink Ring Terminals
- Data name: Heat Shrink Ring Terminals_Heat Shrink Wire terminals
Shrink ratio: 3:1
Excellent conductivity property
High transparency, High tensile strength
Excellent stretch and mechanical damage resistance
High elasticity assures steady performance
Water proof and moisture resistance
Operating temperature: -55℃～125℃
Product details

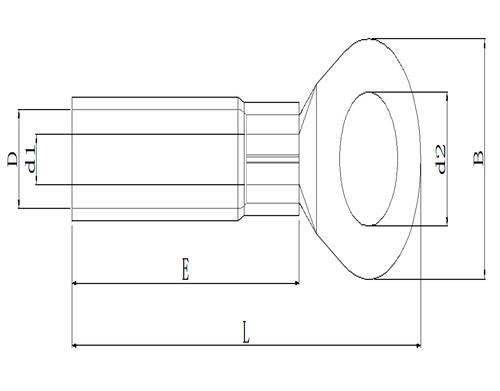

Product Code | D | d1 | d2 (mm) | B | E | L (mm) | Color | Conductor | Wall of Copper Terminals(mm) |
| HS-RV1.25-4 | 4.8 | 1.6 | 4.3 | 8.0 | 21 | 28 | Red | 0.5-1.5mm2 (22-18AWG) | 0.7 |
| HS-RV1.25-5 | 4.8 | 1.6 | 5.3 | 9.52 | 21 | 30 | |||
| HS-RV1.25-6 | 4.8 | 1.6 | 6.5 | 11.6 | 21 | 33 | |||
| HS-RV1.25-8 | 4.8 | 1.6 | 8.5 | 11.6 | 21 | 35 | |||
| HS-RV1.25-10 | 4.8 | 1.6 | 10.5 | 13.6 | 21 | 38 | |||
| HS-RV2-4 | 5.8 | 2.2 | 4.3 | 8.5 | 21 | 28 | Blue | 1.5-2.5mm2 (16-14AWG) | 0.8 |
| HS-RV2-5 | 5.8 | 2.2 | 5.3 | 9.5 | 21 | 30 | |||
| HS-RV2-6 | 5.8 | 2.2 | 6.5 | 12 | 21 | 33 | |||
| HS-RV2-8 | 5.8 | 2.2 | 8.5 | 12 | 21 | 35 | |||
| HS-RV2-10 | 5.8 | 2.2 | 10.5 | 13.6 | 21 | 38 | |||
| HS-RV2-12 | 5.8 | 2.2 | 12.5 | 19.2 | 21 | 38 | |||
| HS-RV5.5-4 | 6.8 | 3.4 | 4.3 | 9.5 | 25 | 32 | Yellow | 4-6mm2 (12-10AWG) | 1.0 |
| HS-RV5.5-4 | 6.8 | 3.4 | 5.3 | 9.5 | 25 | 34 | |||
| HS-RV5.5-6 | 6.8 | 3.4 | 6.5 | 12 | 25 | 37 | |||
| HS-RV5.5-8 | 6.8 | 3.4 | 8.5 | 15 | 25 | 39 | |||
| HS-RV5.5-10 | 6.8 | 3.4 | 10.5 | 15 | 25 | 42 | |||
| HS-RV5.5-12 | 6.8 | 3.4 | 12.5 | 19.2 | 25 | 42 |
