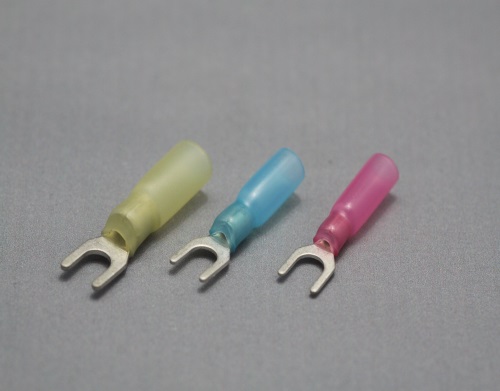

  • Product name: Heat Shrink Spade Terminals
  • Data name: Heat Shrink Spade Terminals_Heat Shrink Wire terminals
Shrink ratio: 3:1
Excellent conductivity property
High transparency, High tensile strength
Excellent stretch and mechanical damage resistance
High elasticity assures steady performance
Water proof and moisture resistance
Operating temperature: -55℃~125℃

Product details

Product Code

D
(mm)

d1
(mm)

d2
(mm)

B
(mm)

E
(mm)

L
(mm)


Color


Conductor
Wall of Copper Terminals(mm)
HS-SVS1.25-4 4.8 1.6 4.3 8.1 21 20
Red
0.5-1.5mm2
(22-18AWG)
0.7
HS-SVS1.25-5 4.8 1.65.3 9.5 21 30
HS-SVS2-4 5.8 2.24.3 8.121 30
Blue
1.5-2.5mm2
(16-14AWG)
0.8
HS-SVS2-5 5.8 2.25.3 9.5 21 30
HS-SV5.5-4 6.8 3.44.39.025 34
Yellow
4-6mm2
(12-10AWG)
1.0
HS-SV5.5-5 6.8 3.4 5.3 9.0 25 34
HS-SV5.5-6 6.8 3.4 6.39.025 34
