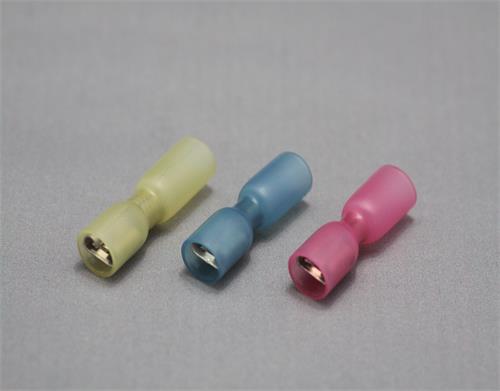

- Product name: Heat Shrink Female Terminals
- Data name: Heat Shrink Female Terminals_Heat Shrink Wire terminals
Shrink ratio: 3:1
Excellent conductivity property
High transparency, High tensile strength
Excellent stretch and mechanical damage resistance
High elasticity assures steady performance
Water proof and moisture resistance
Operating temperature: -55℃～125℃
Product details

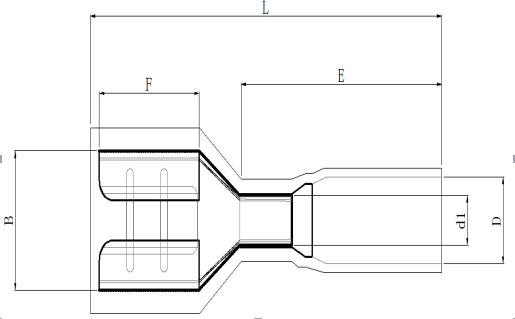

Product Code | D | d1 | Tab | B | L (mm) | Color | Conductor | Wall of Copper Terminals(mm) |
| HS-FDFD1.25-187 | 4.8 | 1.6 | 4.8*0.8 | 5.2 | 30 | Red | 0.5-1.5mm2 (22-18AWG) | 0.4 |
| HS-FDFD2-187 | 5.8 | 2.2 | 4.8*0.8 | 5.2 | 30 | Blue | 1.5-2.5mm2 (16-14AWG) | |
| HS-FDFD5.5-187 | 6.8 | 3.4 | 4.8*0.8 | 5.2 | 32 | Yellow | 4-6mm (12-10AWG) | |
| HS-FDFD1.25-250 | 4.8 | 1.6 | 6.3*0.8 | 6.6 | 30 | Red | 0.5-1.5mm2 (22-18AWG) | |
| HS-FDFD2-250 | 5.8 | 2.2 | 6.3*0.8 | 6.6 | 30 | Blue | 1.5-2.5mm2 (16-14AWG) | |
| HS-FDFD5.5-250 | 6.8 | 3.4 | 6.3*0.8 | 6.6 | 32 | Yellow | 4-6mm (12-10AWG) |
