- Product name: FLAT CABLE CLAMP FC SERIES
- Data name: FLAT CABLE CLAMP FC SERIES_Mounting series
Material:UL approved Nylon 66,94V-2
Color:Natural ,available in other colors.
Clamp down ribbon cable by finger pressure.
Product details
Part NO.型号 | A | B | C | D | E | F | Export出口 | Packing 包装 | Download |
| FC-30 | 32.0 | 6.2 | 45.8 | 19.2 | 14.9 | 2.8 | - | 100 PCS | 下载 |
| FC-40 | 39.5 | 6.2 | 53.3 | 19.2 | 14.8 | 2.6 | - | 100 PCS | 下载 |
| FC-50 | 63.5 | 6.0 | 77.5 | 19.3 | 14.9 | 2.8 | 50PIN | 100 PCS | 下载 |
| FCT-30 | 31.8 | 11.3 | 45.1 | 18.5 | 16.0 | 16.3 | 30PIN | 100 PCS | 下载 |
| FCT-40 | 54.0 | 11.3 | 67.0 | 15.7 | 12.0 | 16.3 | 40PIN | 100 PCS | 下载 |
| FCT-50 | 65.0 | 11.3 | 78.4 | 18.6 | 15.8 | 16.3 | 50PIN | 100 PCS | 下载 |
| FC-635 | 63.5 | 6.4 | 76.2 | - | - | - | 50PIN | 100 PCS | 下载 |
| FC-776 | 77.6 | 6.4 | 90.0 | - | - | - | 60PIN | 100 PCS | 下载 |
| FCP-315 | 31.4 | 7.6 | 44.7 | 19.1 | 15.2 | 12.4 | 30PIN | 100 PCS | 下载 |

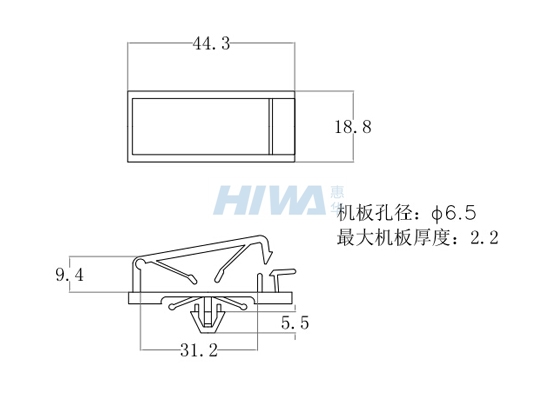

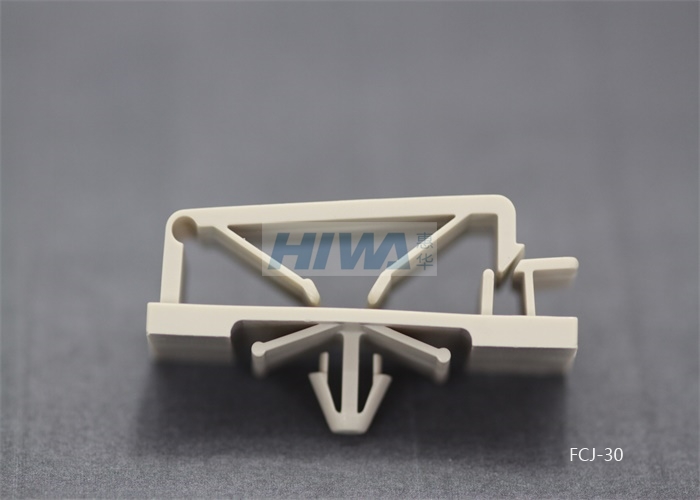

| FCJ-315 | 31.2 | 44.3 | 18.8 | 下载 | |||||
| FCW-50 | 52.2 | 7.0 | 65.8 | 26.2 | 23.0 | 13.0 | 30PIN | 100 PCS | 下载 |
