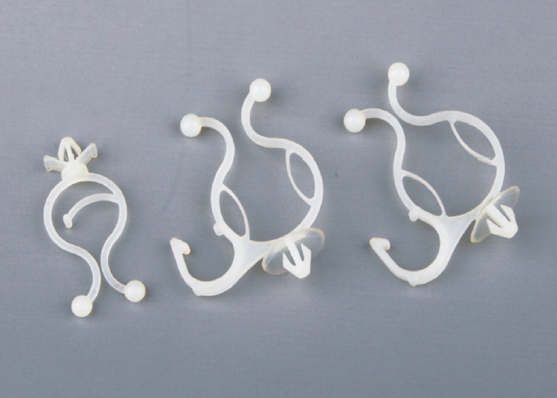

  • Product name: STANDOFF TWIST TIE
  • Data name: STANDOFF TWIST TIE_Buckle series
点击打开链接点击打开链接Material: UL approved Nylon 66(Natueal),94V-2
Locking into pre-drilled hole,Assembles cables into“W” part and locks with a twist.

Product details

Part NO.

Dimension Apply the PC board Packing

Download

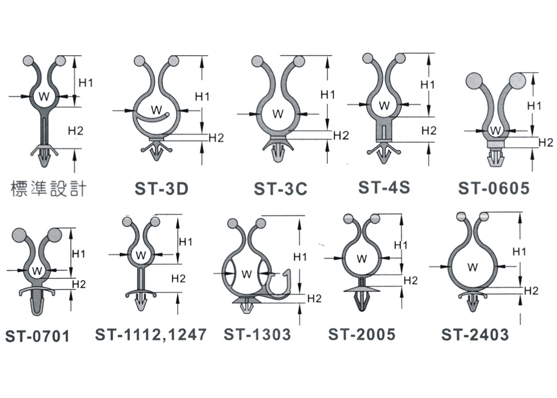

H1 H2 W Base plate aperture Applicable thickness
ST-1 19.5 31.7 6.0 4.6~4.8 1.0~2.8 100PCS Drawing
ST-2 27.8 21.2 11.0 4.8~5.0 1.0~2.8 100PCS Drawing
ST-3 27.3 4.7 10.4 4.6~4.8 1.0~2.8 100PCS Drawing
ST-3B 28.0 5.0 11.0 6.2~6.6 0.5~2.0 100PCS Drawing
ST-3C 32.0 5.0 15.0 4.6~4.8 0.5~1.6 100PCS Drawing
ST-3D 36.2 5.3 18.0 4.4~4.8 1.0~2.4 100PCS Drawing
ST-4S 27.9 13.0 11.0 4.2~4.8 1.0~2.4 100PCS Drawing
ST-4 31.3 13.1 15.0 4.6~4.8 1.0~2.0 100PCS Drawing
ST-0560 20.5 60.9 5.0 4.6~5.0 1.6~3.0 100PCS Drawing
ST-0605 19.3 5.3 6.1 4.0~4.4 2.4 100PCS Drawing
ST-0701 22.0 1.3 7.0 4.6~4.8 1.0~2.8 100PCS Drawing
ST-1112 26.8 15.3 11.0 4.6~4.8 1.6~3.0 100PCS Drawing
ST-1247 27.2 50.5 11.0 4.6~4.8 1.6~3.0 100PCS Drawing
ST-1303 45.0 3.0 13.5 6.6 1.8~3.6 100PCS Drawing
ST-1602 31.7 5.1 16.0 4.4~4.6 0.5~1.6 100PCS Drawing
ST-2005 36.5 5.1 20.0 7.2~7.6 1.8~3.6 100PCS Drawing
ST-2403 44.2 3.2 23.5 4.8~5.0 0.5~2.6 100PCS Drawing
